Dornoch Rectangular

Name: Dornoch Rectangular
SKU: 284
Availability: InStock

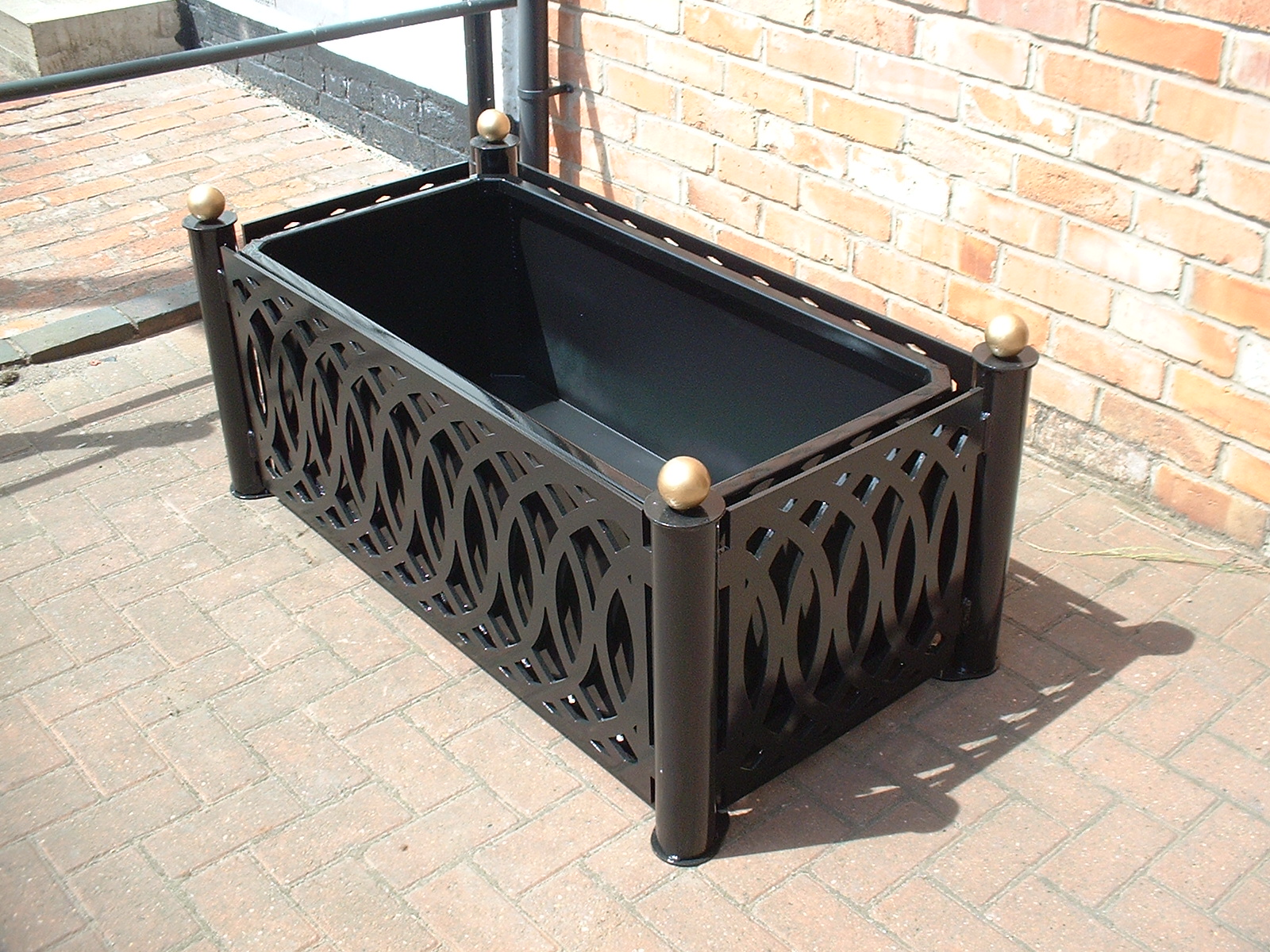

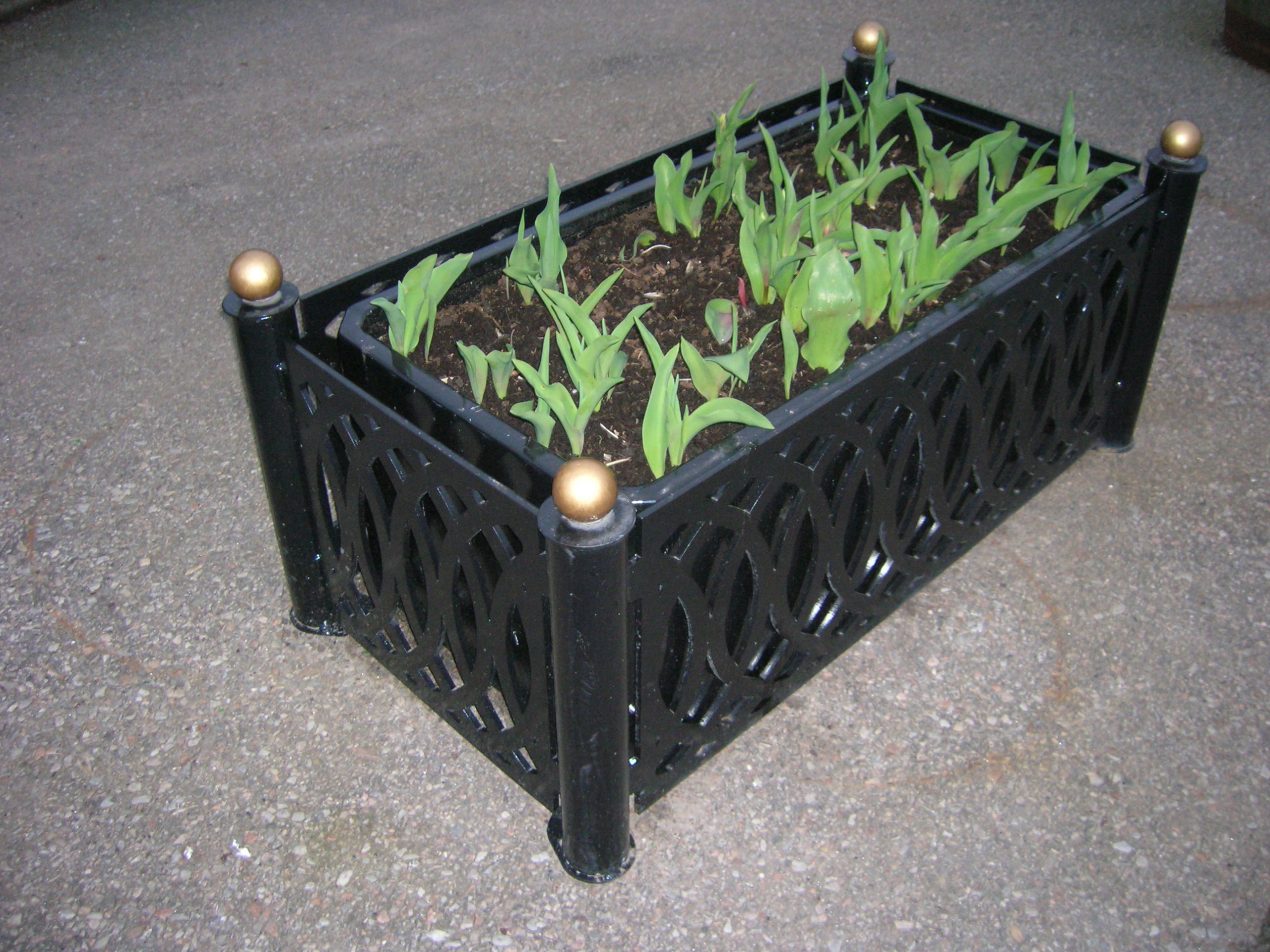

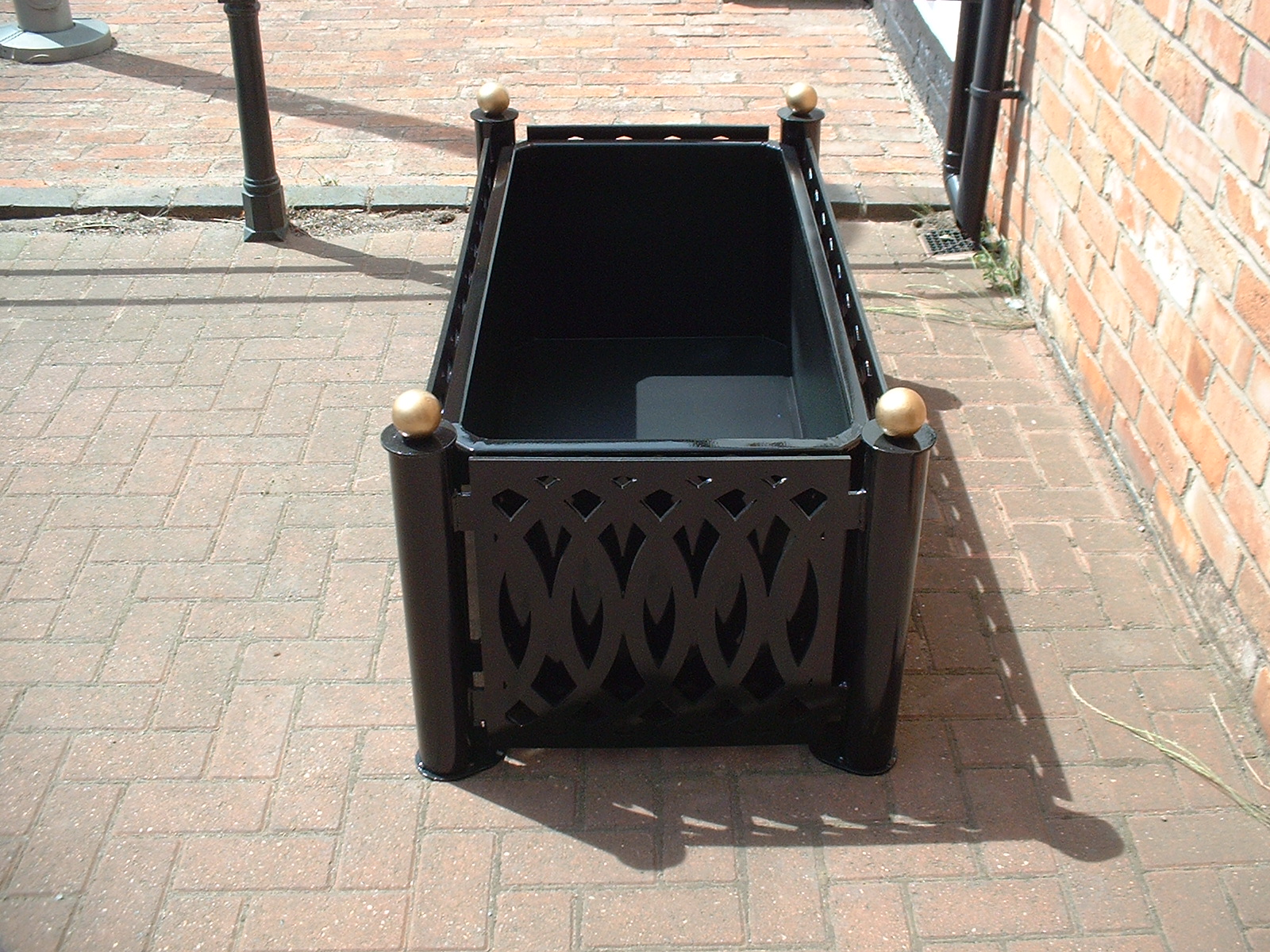

The Dornoch rectangular planter us ideal for placing alongside buildings or for when space is an issue.

At 1200mm x 600mm with a laser cut design fabricated from mild steel sheet that is fully hot dipped galvanised, each corner post features a sphere that can be highlighted in any contrasting colour or removed if preferred. It also has height adjustable feet for levelling on uneven ground.

The planter comes complete with a 2mm thick sheet aluminium removable liner.

Choosing Your Notice Board

Your choice of Notice Board will be determined by the below.

There are 5 simple steps to building your own bespoke notice boards, please see below.

The amount of information you wish to display
The amount of space you have available to site your Notice Board
Picking the size of Notice Board, you require by the viewing area size based on our standard sizes. Please use our guide based on a A4 size as an idea. For example: Panel size 100cm high x 80cm wide. The viewing area is 84cm x 64cm which will display 9 A4 documents.
Backing Board Sundela with pins or Metal panel powder coated supplied with magnetic ons (this is new and our preferred option).
At this point if you require more display area and space is an issue you can consider the below. A double-sided panel. Top opening doors (this option is only available on panels up to 140cm in width). See chart for options.
We are more than happy, if our standard sizes do not suit your requirement, to design one that will.

1: Choose Your Notice Board Opening

Door are fitted with brass hinges and attached using counter sunk brass machine screws and can either be fitted with free opening doors or lockable with cam locks for added security. The real beauty of our systems and means of production is that you can have the combination you really want.

Single or double opening available on all panels and hung side or top up to 140cm over only side available.

2: What Size Do You Need?

Height	Standard Width	Viewing Area	A4 Capacity
100cm	80cm	1 Door - Viewing area 84cm x 64cm	9
100cm	100cm	1 Door - Viewing area 84cm x 84cm	12
100cm	120cm	1 Door Top Hung - Viewing area 84cm x 104cm	12 (with margin)
100cm	120cm	2 Door - Viewing area 84cm x 46.5cm	12 (with margin)
100cm	140cm	1 Door Top Hung - Viewing area 84cm x 124cm	15
100cm	140cm	2 Door - Viewing area 84cm x 56.5cm	15
100cm	160cm	2 Door Only - Viewing area 84cm x 66.5cm	18
100cm	180cm	2/3 Doors Only - Viewing area 84cm x 76.5cm	18
100cm	200cm	2/3 Doors Only - Viewing area 84cm x 86.5cm	24

3: Choose Your Headboard

Headboards are designed bespoke to your requirements and are 5mm aluminium back plates with 2mm text.

Using CAD we can programme any shape of headboard, artwork, borders, text, font style etc. The design is then sent to you via email for approval.

We are happy to adapt your designs or artwork which we can accept in DWG or DXF formats. Artwork to be printed should ideally be sent in high resolution, a minimum of 300 DPI.

Standard Designs

Vinyl text/artwork applied to powder coated headboard
Raised text-borders in 2mm aluminium and powder coated
Highlighted text/borders in enamel painted by hand on powder coated headboard
Artwork disc printed onto vinyl mounted behind 6mm polycarbonate with polished edge inserted and bonded into laser cut aperture. Although our standard is a 15cm disc other designs and shapes can be produced. Artwork disc available on the Chatsworth, Rutland and Belvoir.

4: Choose Your Post Design

Posts are manufactured from 6.25mm wall aluminium tube with a 6mm connecting bracket and 3 designs. All posts can be highlighted in enamel paint hand painted or powder coated ie gold/silver to match highlights on headboard.
